How to Prevent Handheld XRF Detector Window Damage: The Ultimate Protective Guide

Executive Summary

The detector window of a handheld X-ray Fluorescence (XRF) analyzer is the most delicate physical component within the device's optical path. Its physical integrity directly dictates light element detection accuracy, instrument lifespan, and enterprise maintenance costs.

Whether your instrument features a Silicon Drift Detector (SDD) or a Silicon PIN Diode (Si-PIN) Detector, both represent high-value, high-precision optoelectronic components. Once a detector window membrane is punctured or ruptured, companies face far more than costly spare parts replacement and field technician travel expenses—they suffer severe operational downtime across production lines and quality inspection workflows.

Based on global manufacturer field-service data, this comprehensive guide analyzes the root causes of detector window failure and outlines Standard Operating Procedures (SOPs), routine maintenance protocols, and enterprise asset management strategies to protect your handheld xrf metal analyzer.

1. XRF Detector Window Structure & Root Causes of Failure

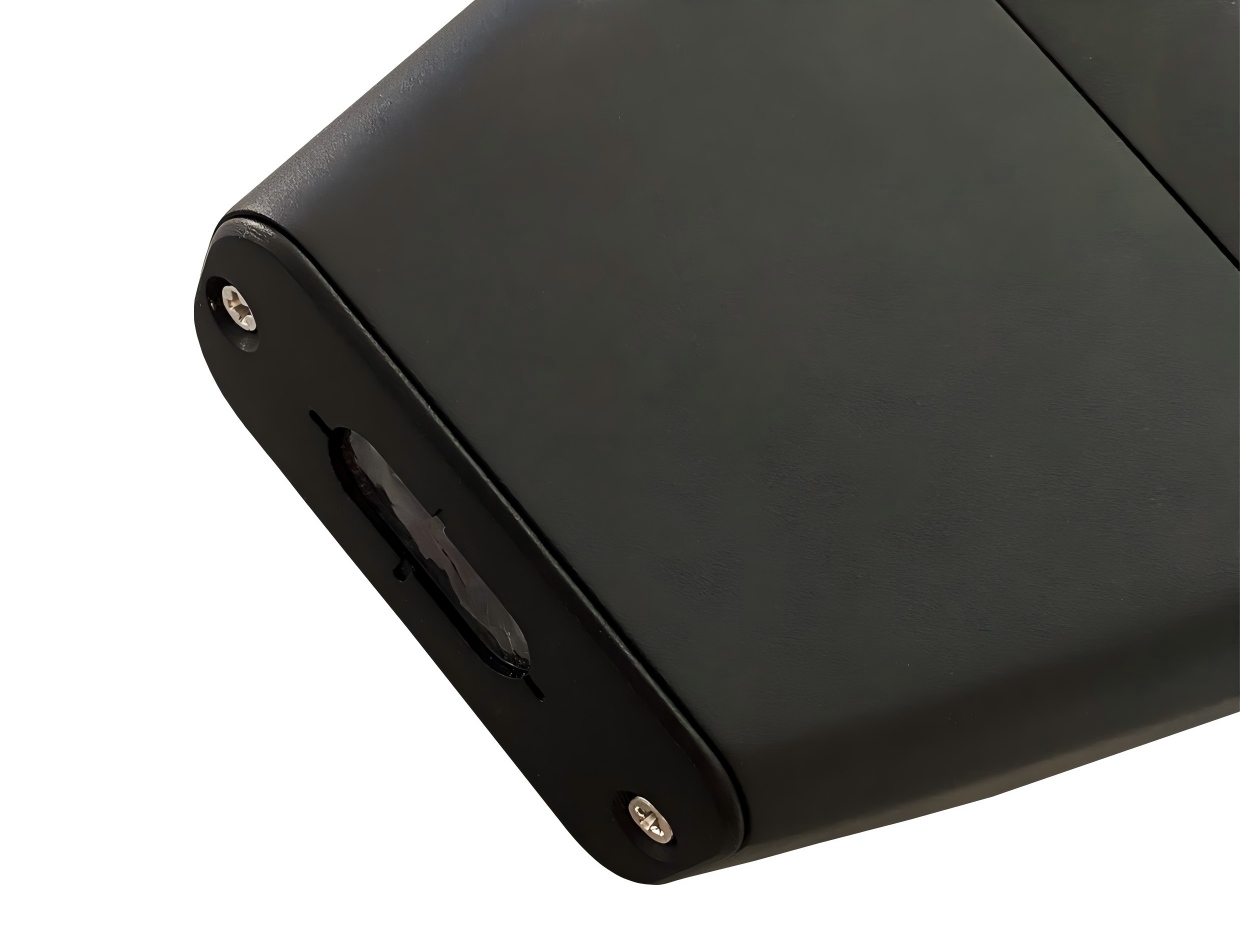

Handheld XRF analyzers typically feature an ultra-thin, radiation-transmissive film at the front snout. The primary configurations include:

Polyimide (Kapton®/Proline) Ultra-Thin Windows: Extremely thin with maximum X-ray transmission for light elements like Magnesium (Mg), Aluminum (Al), Silicon (Si), Phosphorus (P), and Sulfur (S). However, these membranes have low mechanical strength and are vulnerable to sharp punctures, abrasion, and thermal damage.

Metallic Beryllium (Be) Windows: Offers higher mechanical strength and puncture resistance for mid-to-heavy metal analysis. However, Beryllium absorbs low-energy X-rays emitted by light elements and is susceptible to oxidation and chemical corrosion in humid or acidic environments. (Note: Beryllium is toxic; avoid direct skin contact if a Be window ruptures).

The detector window seals the vacuum or controlled internal chamber to keep out dust, moisture, and debris while allowing characteristic X-rays to reach the internal SDD or Si-PIN sensor chip. Consequently, it remains the single most exposed and vulnerable physical surface on the device.

According to technical support statistics, non-normal window failures stem from three primary root causes:

Direct Sharp Puncture: Dragging or tilting the nosepiece against metal turnings, sharp scrap metal, jagged mineral specimens, or pointed electronic components can instantly pierce the film, causing catastrophic scratch damage to the underlying SDD or Si-PIN chip.

Particulate Abrasion & Shear Tears: Industrial dust (stainless steel, titanium, quartz, or iron particulates) easily accumulates along the window frame in mining or scrap recycling environments. Pressing the analyzer against a sample traps these particles, creating severe abrasive shear forces that turn micro-cracks into full tears.

Improper Cleaning Protocols: Dry-wiping with industrial paper towels or using corrosive solvents like acetone, paint thinners, or strong acids/alkalies rapidly degrades the polymer matrix, resulting in swelling, delamination, and film perforation.

2. Standard Operating Procedures (SOPs) for Preventive Care

Companies using handheld XRF devices should implement strict SOPs focusing on four operational pillars: Pre-Test Inspection, Proper Positioning, Protective Consumables, and Non-Destructive Cleaning.

Pre-Measurement Surface Assessment & Positioning

Surface Preparation: Inspect sample geometry before pulling the trigger. File or grind down sharp burrs, flash, or pointed edges on machined parts or scrap metal.

Parallel Contact: Maintain a strict 90-degree parallel alignment between the analyzer snout and the sample. Apply gentle, uniform pressure—never tilt, force, or drag the window across sample surfaces.

Temperature & Chemical Control: Avoid direct contact with hot samples exceeding factory temperature ratings (excessive heat melts polyimide films). Thoroughly wipe away cutting fluids, lubricants, or acid-pickling residues before scanning.

Specialized Workstations for Small & Irregular Samples

Never hold small fasteners, thin wires, metal turnings, or tiny electronic components against the window with your fingers.

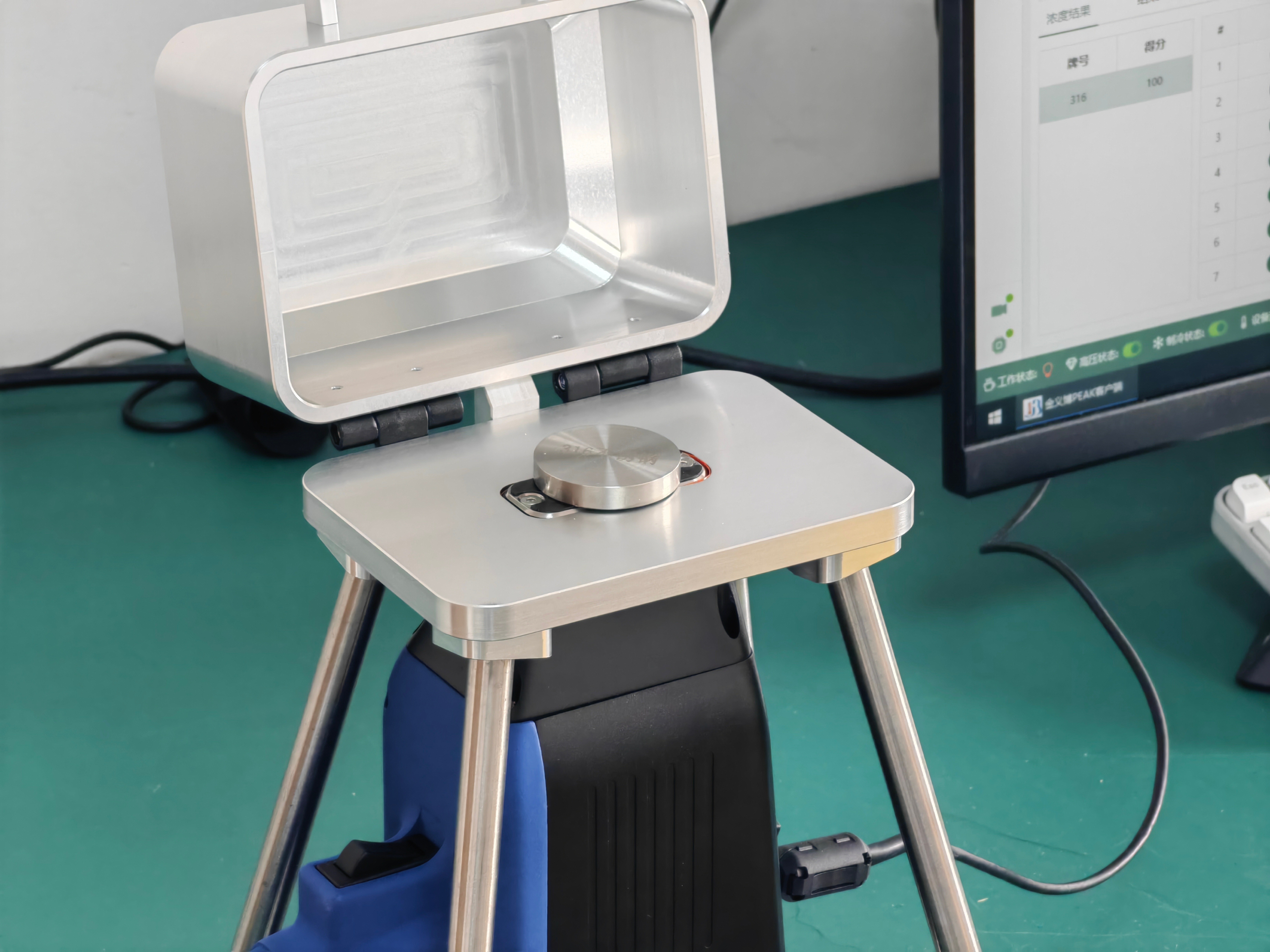

Laboratory Environments: Secure the instrument in a dedicated XRF Test Stand. Place small items inside a sealed sample cup or buffer-lined chamber for collimated testing.

Field Sorting Environments: Utilize heavy-duty rubber or silicone sample mats. Lay small parts flat on the mat and gently lower the analyzer snout onto them to prevent rolling and pinching.

Match Protective Consumables to Application

Light Element Analysis (Mg, Al, Si, P, S): Use factory polyimide windows backed by replaceable thin-film covers (such as Proline, Mylar®, or Ultralene®) as a primary dust and impact shield.

Heavy Metal Analysis (Cu, Fe, Ni, Pb, Zn): For Beryllium window models, fit a flexible silicone faceplate bumper to absorb direct physical impacts during rough field use.

Consumable Replacement: Replace external protective films or faceplate bumpers immediately upon noticing scratches, embedded metallic dust, or oil discoloration.

Standardized Non-Destructive Cleaning Procedure

No hard objects shall come into direct contact with the detector membrane during cleaning.

Step 1: Dry Removal of Surface Dust (Daily Routine Dust Cleaning) Use an industrial-grade lint-free rubber air blower. Medical ear syringes with residual moisture and high-pressure nitrogen directed at close range are strictly prohibited. Blow off surface dust and metal debris at a 45° lateral angle to avoid vertical airflow impact that may tear the membrane.

Step 2: Mild Chemical Cleaning for Oil Contamination When cutting fluid stains or contaminants accumulate on the window, take a dedicated fine-tipped lint-free cotton swab, dampen it with a minimal amount of high-purity anhydrous ethanol, and sweep gently across the membrane in a single direction. Do not rub back and forth vigorously or exert vertical pressure on the membrane. Allow the surface to air-dry for 1–2 minutes before resuming testing.

Prohibited Operations

Do not dry-wipe the membrane with regular paper tissues or coarse lint-free paper.

Do not apply chemical cleaners including acetone, paint thinners, strong acids or strong alkalis.

Do not scrub the surface with repeated heavy wiping motions.

Do not use workshop compressed air for close-range direct blowing toward the window (such air carries high pressure, moisture and oil aerosols).

3. Enterprise Asset Management & Maintenance Framework

Preventing hardware damage requires combining operator compliance with institutional equipment management policies:

1. Dual-Track Operator Certification

Incorporate Radiation Safety and Detector Window Protection Protocols into mandatory employee onboarding. Operators must pass both theoretical exams and practical handling evaluations before receiving authorization to operate handheld XRF units. Conduct annual refresher training focused on high-risk sample handling.

2. Tiered Inspection Protocols

Daily Pre/Post-Shift Audits: Operators must conduct visual inspections of the window assembly at the start and end of every shift, checking for micro-tears, sagging, oil buildup, or edge peeling.

Weekly High-Risk Audits: Increase inspection frequency to weekly in harsh, wet, or dusty environments (e.g., mines, scrap yards, pickling plants) to ensure zero moisture condensation or grit buildup behind the faceplate.

Immediate Quarantine Policy: If a window film shows any sign of pinholes, sagging, or delamination, instantly quarantine the analyzer and log a maintenance request. Operating a unit with a compromised window risks venting the vacuum chamber, destroying the SDD or Si-PIN detector module.

Conclusion

The detector window of a handheld XRF serves as the critical barrier for precision material analysis. Its condition directly dictates analytical repeatability, instrument uptime, and long-term cost of ownership.

By implementing standardized sample preparation procedures, utilizing application-specific test stands, adhering to non-destructive cleaning methods, and enforcing rigorous asset inspection, industrial facilities can eliminate over 90% of user-induced detector window failures. Protecting this vital component ensures continuous, reliable, and cost-effective non-destructive testing (NDT) across all field and laboratory operations.
